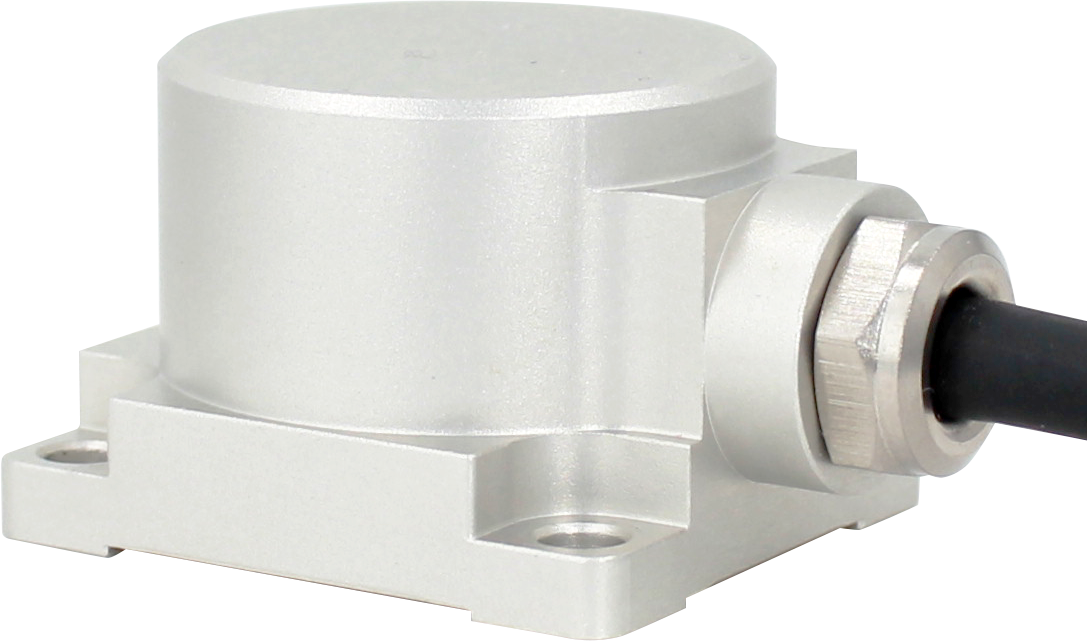

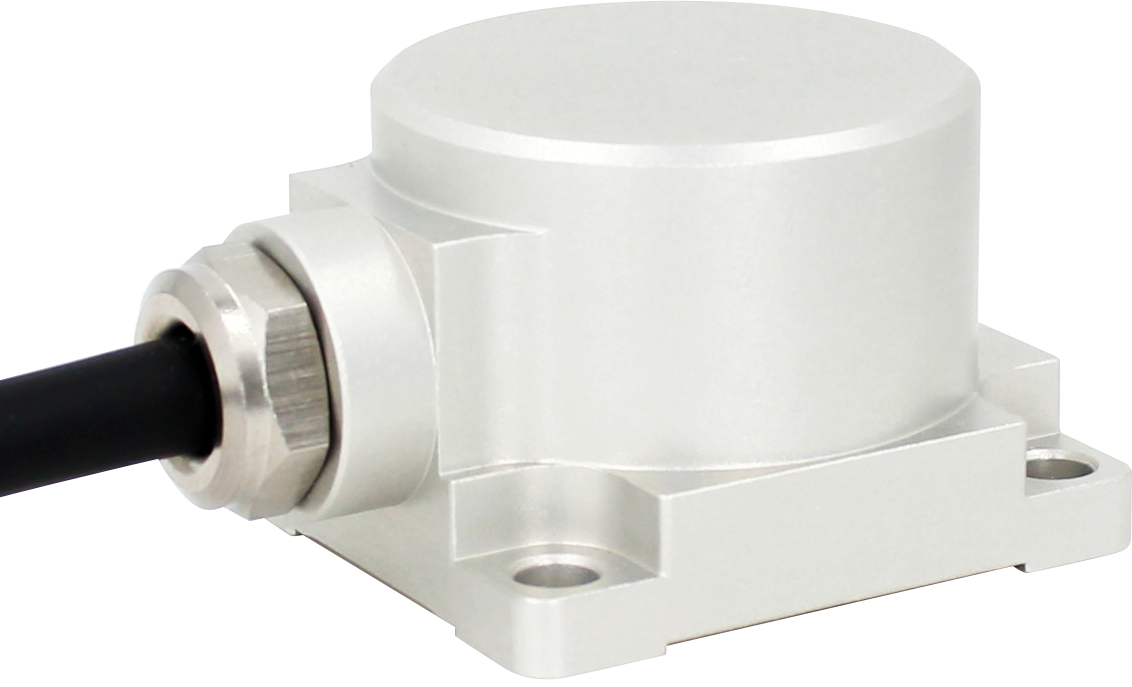

RION AKM390

MEMS Voltage-Mode Accelerometer

Three axes (X, Y, Z)

Output voltage: 0 ~ 5V

Power supply voltage: 9~36V

Shock resistance: 2000G

Operating temperature: -40℃~ +85℃

Storage temperature: -40℃ ~ +85℃

Excellent deviation stability, good environmental performance (shock, vibration and temperature)

  • Product Description
  • Scope of application
  • Parameter
  • Dimensions
  • Download

Product Description

AKM390 tri-axial accelerometer is a widely used acceleration sensor products independently developed and produced by RION Technology, which can be applied to vibration testing, impact testing and other fields. The product is analog voltage output and can be set with different address codes. Multiple sensors can be connected in series for a long distance, which is convenient for multi-point measurement and data analysis. The AKM390 is a monocrystalline silicon capacitive sensor. It consists of a silicon chip processed by micromachining, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, solid structure and stable output after calibration. The new electronic configuration provides solid state power for reset and full protection against over-current. The accelerometers have the characteristics of solid structure, low power consumption and excellent deviation stability to ensure the reliability of product output.

Scope of application

Crash Recording, Fatigue Monitoring and Prediction

Wind power

Traffic system monitoring, subgrade analysis and high-speed railway fault detection

Large machinery and engines

Low frequency vibration and automatic monitoring

Medical equipment

Bridge

Car

Roller

PARAMETERS

AKM390

Parameter

Unit

Measure range

±2

±4

±8

±10

±20

±40

g

Deviation calibration

<1

<1

<1

<1

<1

<1

mg

Measure axis

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

axis

Power on/off repeatability

<2

<2

<2

<2

<2

<2

mg(max)

Sensitivity (± 10%)

1250

625

312.5

250

125

62.5

mv/g

Temp. coefficient of deviation

0.01

0.01

0.01

0.05

0.05

0.05

%/℃

Resolution/Threshold (@ 1Hz)

< 1

< 1

< 1

< 1

< 1

< 1

mg(max)

Nonlinearity

<0.5

<0.5

<0.8

<1

<1

<1

% FS(max)

Response frequency

500

500

500

500

500

500

Hz

Bandwidth (3DB)

1000

1000

1000

1000

1000

1000

Hz

Cross-axis sensitivity

1

1

1

2

2

2

%

Lateral Vibration Sensitivity Ratio

1

1

2

5

5

5

%

Resonant frequency

2.4

2.4

2.4

5.5

5.5

5.5

kHz

Noise density

21

21

21

86.6

86.6

86.6

μg/√Hz

0 G Output 2.5V

<0.01

<0.01

<0.01

<0.008

<0.008

<0.008

mV

Output voltage

0~5V

Reliability

MIL-HDBK-217, Class II

Impact resistance

100g @ 11ms, triaxial (half sine wave)

Recovery time

< 1ms (1000g, 1/2 sin 1ms, impact on i-axis)

Vibration

20g RMS, 20-2000Hz (random noise, o, p, I 30 min per axis)

Input (VDD _ VSS)

9-36 VDC

Operating current consumption

<60mA @ 12 VDC

Protection

IP67

Material

aerospace aluminum

Weight

Product net weight: ≤116g, magnetic base: ≤50g

Size

Product size: L36 × W32 × H24mm

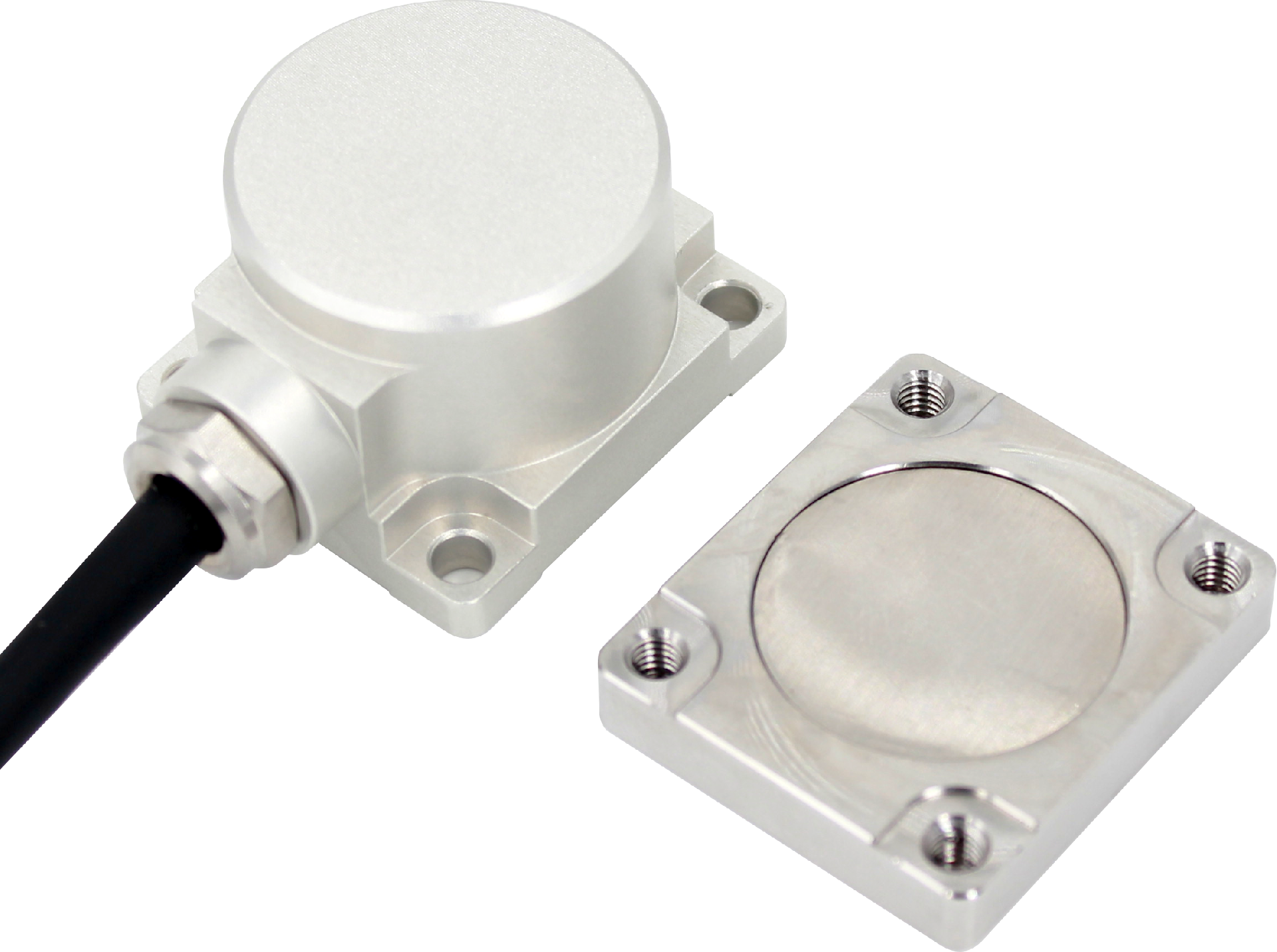

Size of magnetic adsorption base plate: L36 × W32 × H7mm

Dimensions


Size description

  • Shell size

    L36×W32×H24mm

  • Installation size

    L29×25×4mm

  • Mounting screws

    4 M4 screws

Specifications and Software

* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
