RION AKG392

MEMS DIGITAL ACCELEROMETER

Three axes (X, Y, Z)

Output signal: RS232; RS485; TTL

Power supply voltage: 9~36V

Impact resistance: 2000G

Working temperature: -40°C ~ +85°C

Storage temperature: -40°C ~ +85°C

Excellent deviation stability, good environmental performance (shock, vibration and temperature)

  • Product Description
  • Scope of application
  • Parameter
  • Dimensions
  • Download

Product Description

The AKG392 triaxial accelerometer is a new accelerometer independently developed and produced by Rion Technology applied in wide range of applications, which covers many fields such as vibration testing and impact testing. The product adopts digital interface output with options as RS232/485/TTL. Different address codes can be set, multiple accelerometers can be installed in series for long distance, which is convenient for multi-point measurement and data analysis. Internal FFT processing can directly output the object vibration frequency and speed and displacement, convenient for users to analyze data. The vibration, frequency, speed, and displacement of objects below 4HZ are uncertain values and have no reference value. AKG392 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibration, sturdy structure, and stable output. The new electronic configuration provides solid-state power for reset and protection from over-voltage. The long-term stability and deviation of the scale factor in the full-scale range are typically less than 0.1%. This series of products have the characteristics of sturdy structure, low power consumption, and excellent deviation stability, ensuring stable output reliability.

Scope of application

Roller Vibration Monitoring

Bridge monitoring

Wind power safety monitoring

Roller Vibration Monitoring

Bridge monitoring

Wind power safety monitoring

PERFORMANCE

AKG392

PARAMETERS

UNIT

Range

±2

±4

±8

±10

±20

±40

g

Bias calibration

<1

<1

<1

<1

<1

<1

mg

Measure axis

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

axis

Power on/off repeatability

<2

<2

<2

<2

<2

<2

mg(max)

Bias temperature coefficient

0.15

0.15

0.15

0.75

0.75

0.75

%/℃(typical)

Resolution/threshold (@ 1Hz)

< 1

< 1

< 1

< 1

< 1

< 1

mg(max)

Non-linearity

<0.5

<0.8

<1

<1

<1

<1

% FS(max)

Bandwidth (3DB)

500

500

500

500

500

500

Hz

Cross axis sensitivity

1

1

1

2

2

2

%

Transverse vibration sensitivity ratio

1

1

2

5

5

5

%

Resonance frequency

2.4

2.4

2.4

5.5

5.5

5.5

kHz

Output rate

5Hz、10Hz、25Hz、50Hz、100Hz、200Hz、500Hz、1000Hz

Output Interface

RS232/RS485/TTL

Protocol

RION 68 protocol and MODBUS RTU protocol

Reliability

MIL-HDBK-217,Grade 2

Impact resistance

100g@11ms, 3 Axial Direction (Half Sinusoid)

Recovery Time

<1ms(1000g, 1/2 sin 1ms, Impact on the i-axis)

Vibration

20g rms,20~2000Hz (Random noise, o, p, i acts on each axis for 30 minutes)

Input(VDD_VSS)

9~36 VDC

Operating current consumption

<60mA @ 12 VDC

Connector

Industry standard M12 connector

Weight

Product net weight: 82g, Magnetic base: 48g, L-shaped adapter plate 20g

Size

Product size: 34.3*34.3*38.5mm

Magnetic adsorption base size: 34.23*34.23*6mm

L-shaped adapter plate size: 36*44*15mm

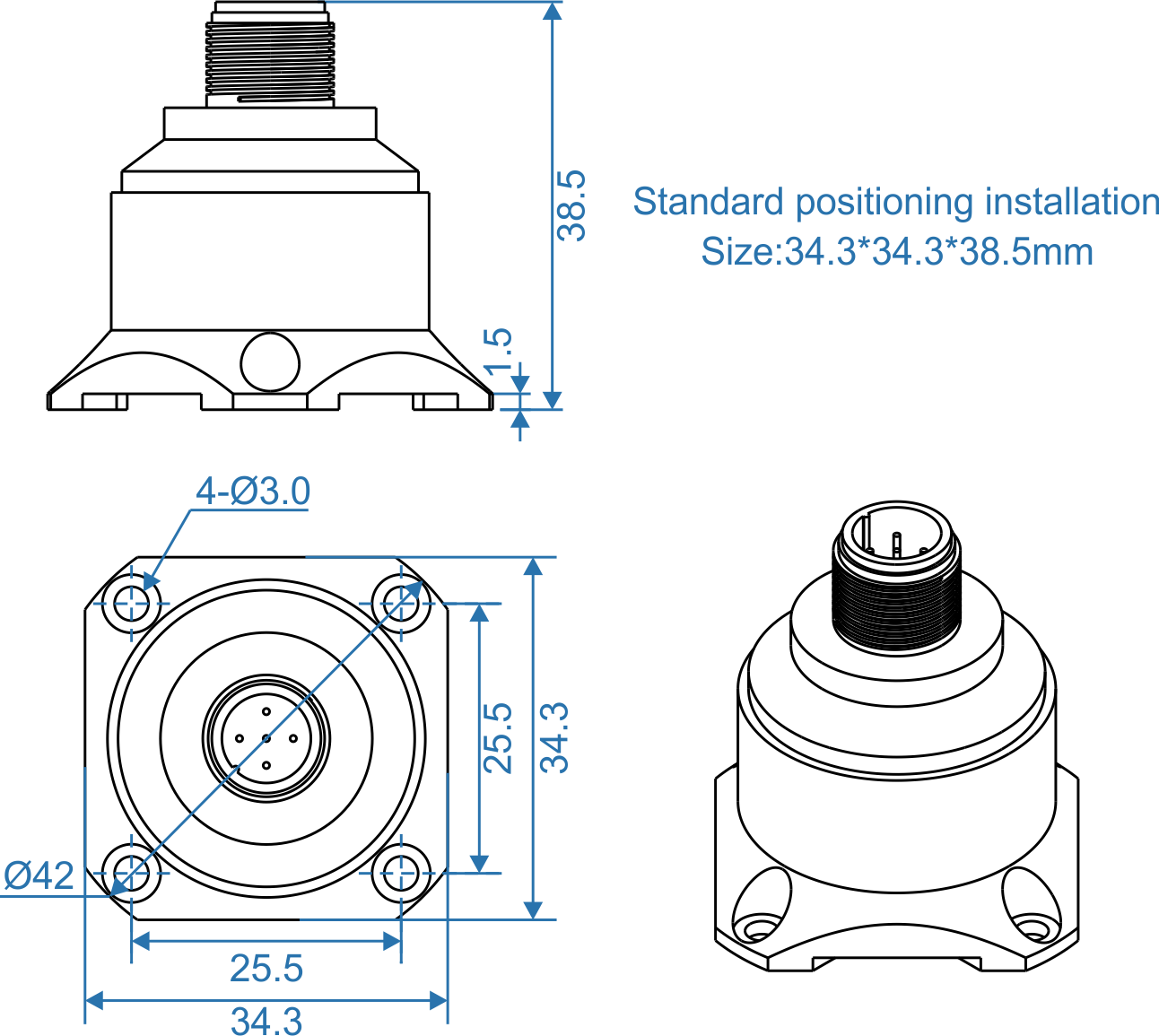

Dimensions

Size Description

  • Shell size

    L34.3×W34.3×H38.5mm

  • Installation size

    L25.2×W25.5×H1.5mm

  • ounting screws

    4 M3 screws

Specifications and Software
