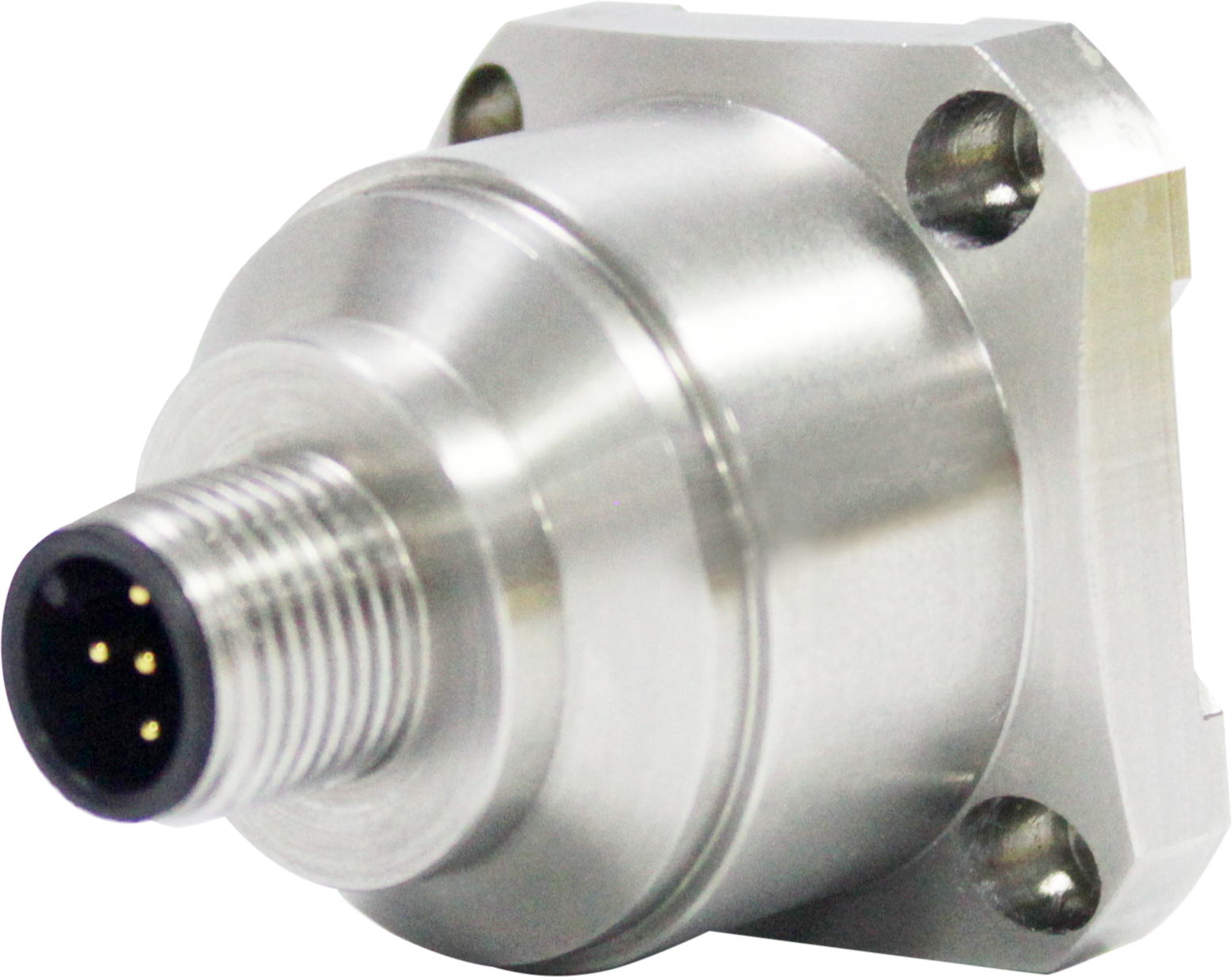

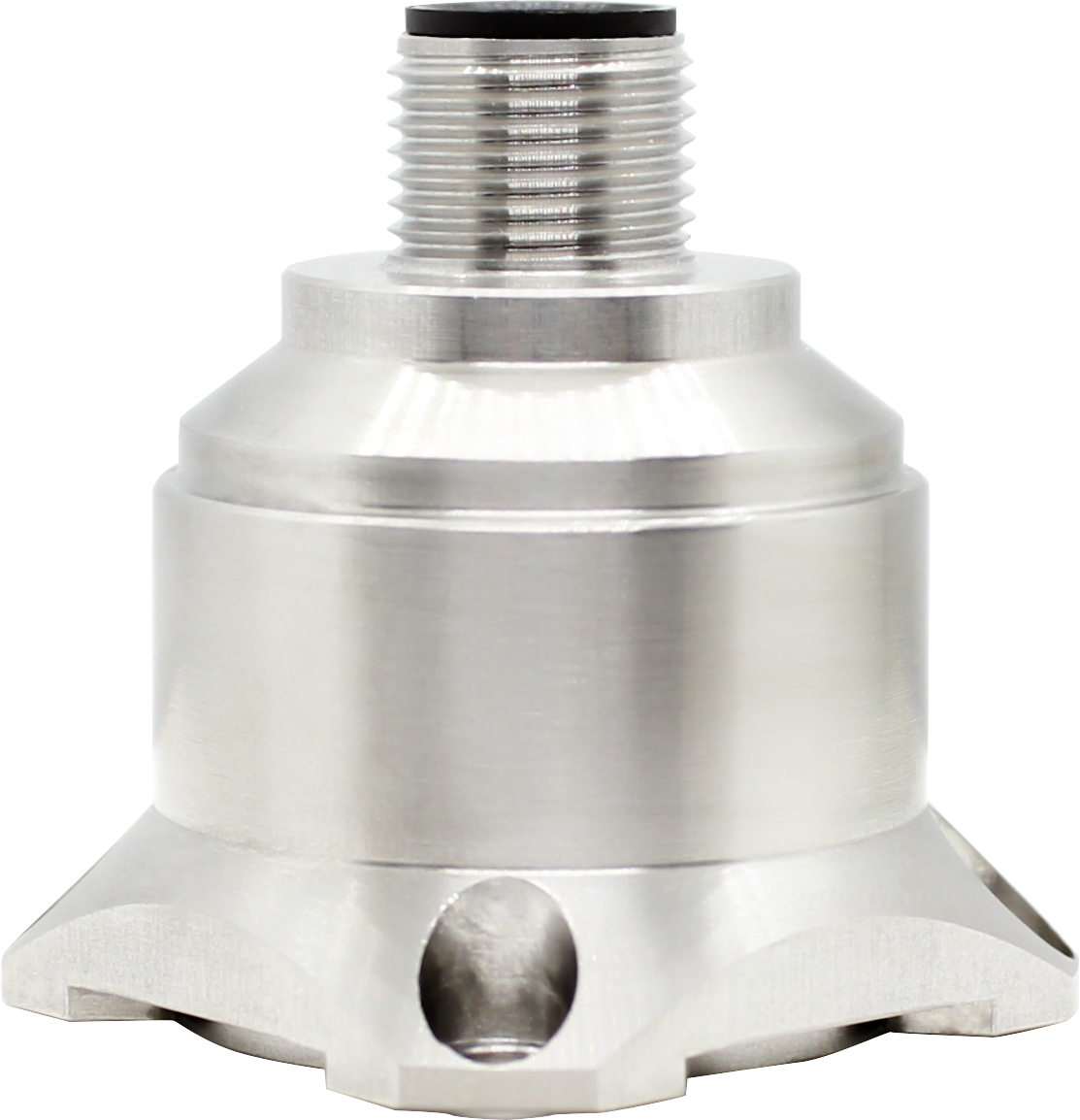

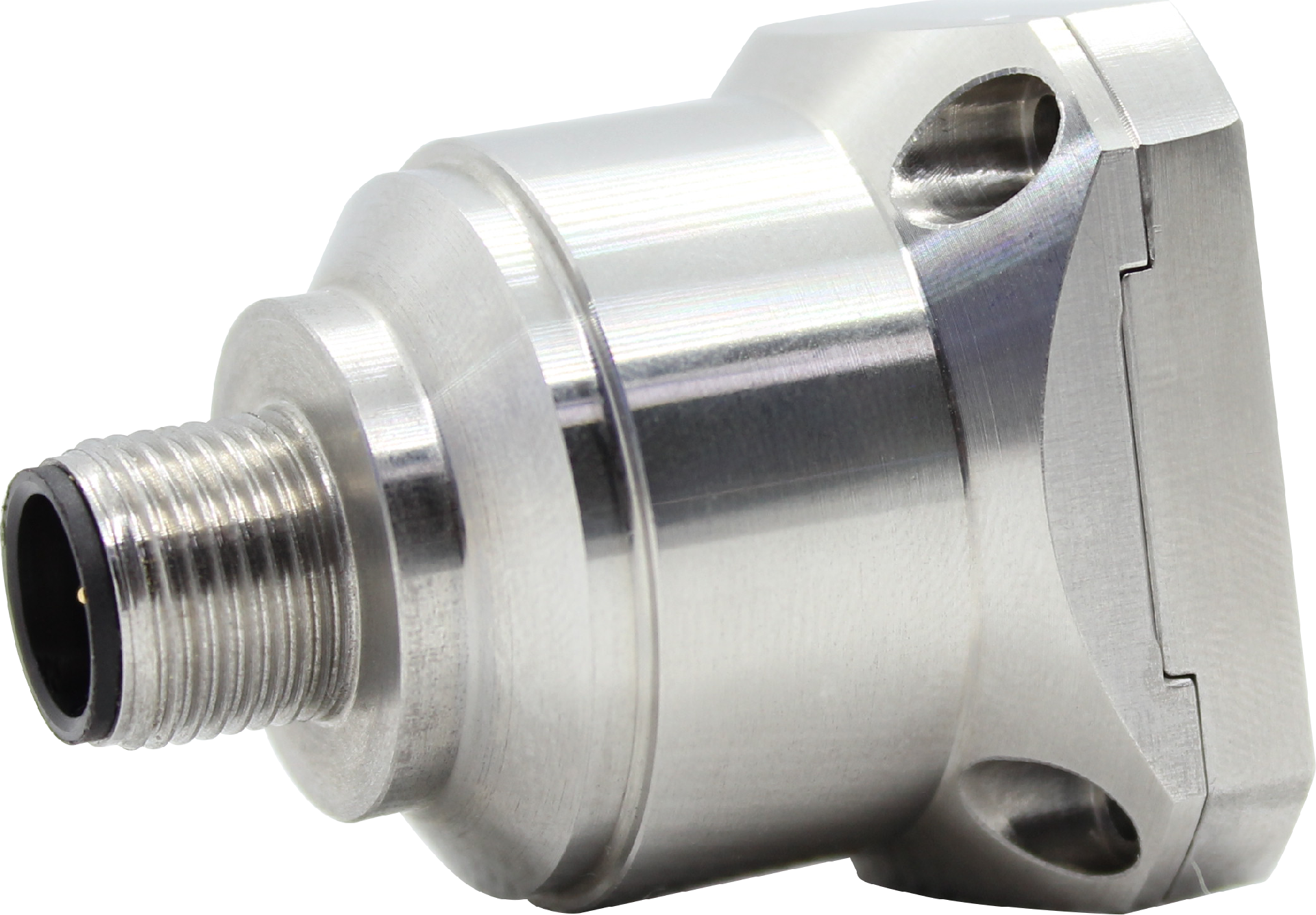

RION AKF392

MEMS DIGITAL ACCELEROMETER

Three-axis (X、Y、Z)

Output: RS232 / RS485 / TTL

Power voltage: 9~36V

Anti-impact: 2000G

Work temp:-40°C to +85°C

Excellent deviation stability

Excellent performance (impact, vibration and temperature)

  • Product Description
  • Scope of application
  • Parameter
  • Dimensions
  • Download

Product Description

The AKF392B three axis accelerometer is produced using Swiss patented technology.This acceleration series can be applied to various fields such as vibration testing and impact testing.The product adopts digital interface output, RS232/485/TTL optional, different address codes can be set, and multiple sensors can be used in series for long distances, which is convenient for multi-point measurement and data analysis. The AKF392B is a monocrystal line silicon capacitive sensor, consisting of a micromachined silicon chip、a low-power ASIC for signal conditioning、a microprocessor for storing compensation values and a temperature sensor. This product has low power consumption, Complete calibration system, solid structure and stable output.The new electronic configuration provides solid-state power for reset, and providing full protection for over-current.In the full range,Typical values for long-term stability and bias of the scale factor are less than 0.1%. This series of products has the characteristics of strong structure, low power consumption and excellent deviation stability, which guarantees outstanding output reliability.

Scope of application

Crash Recording, Fatigue Monitoring and Prediction

Wind power

Traffic system monitoring, subgrade analysis and high-speed railway fault detection

Large machinery and engines

Low frequency vibration and automatic monitoring

Medical equipment

Bridge

Car

Roller

PARAMETERS

AKF392T

PARAMETER

UNIT

Range

±2

±4

±8

±10

±20

±40

g

Deviation Calibration

<1

<1

<1

<1

<1

<1

mg

Measuring Axial

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

X,Y,Z

Axial

Up/Off Power Repeatability

<2

<2

<2

<2

<2

<2

mg(highest)

Deviation Temp. Coefficient

0.01

0.01

0.01

0.01

0.01

0.01

%/℃(Typical value)

Resolution/Threshold (@ 1Hz)

< 1

< 1

< 1

< 1

< 1

< 1

mg(highest)

Nonlinearity

<0.5

<0.8

<1

<1

<1

<1

% FS(highest)

Bandwidth (3Db)

500

500

500

500

500

500

Hz

Cross-axis sensitivity

1

1

1

2

2

2

%

Lateral vibration sensitivity ratio

1

1

2

5

5

5

%

Noise density

21

21

21

86.6

86.6

86.6

μg/√Hz

Resonance frequency

2.4

2.4

2.4

5.5

5.5

5.5

kHz

68 protocol automatic output rate

5Hz、10Hz、25Hz、50Hz、100Hz、200Hz、500Hz、1000Hz

MODBUS automatic output rate

10Hz、25Hz、50Hz

Output Interface

RS232/RS485/TTL

Protocol

Rion Standard Protocol And Modbus Rtu Protocol

Reliability

MIL-HDBK-217,Grade 2

Shock Resistance

100g@11ms、3 Axial Direction (Half Sinusoid)

Recovery Time

<1ms(1000g, 1/2 Sin 1ms,Shock Acting On The i Axis)

Vibrate

20g Rms,20~2000Hz (Random Noise,o ,p,i Per Axis For Action 30 Minutes )

Input(Vdd_Vss)

9-36 VDC

Current Consumption

<60mA @ 12 VDC

Connector

Industry standard M12 connector

Weight

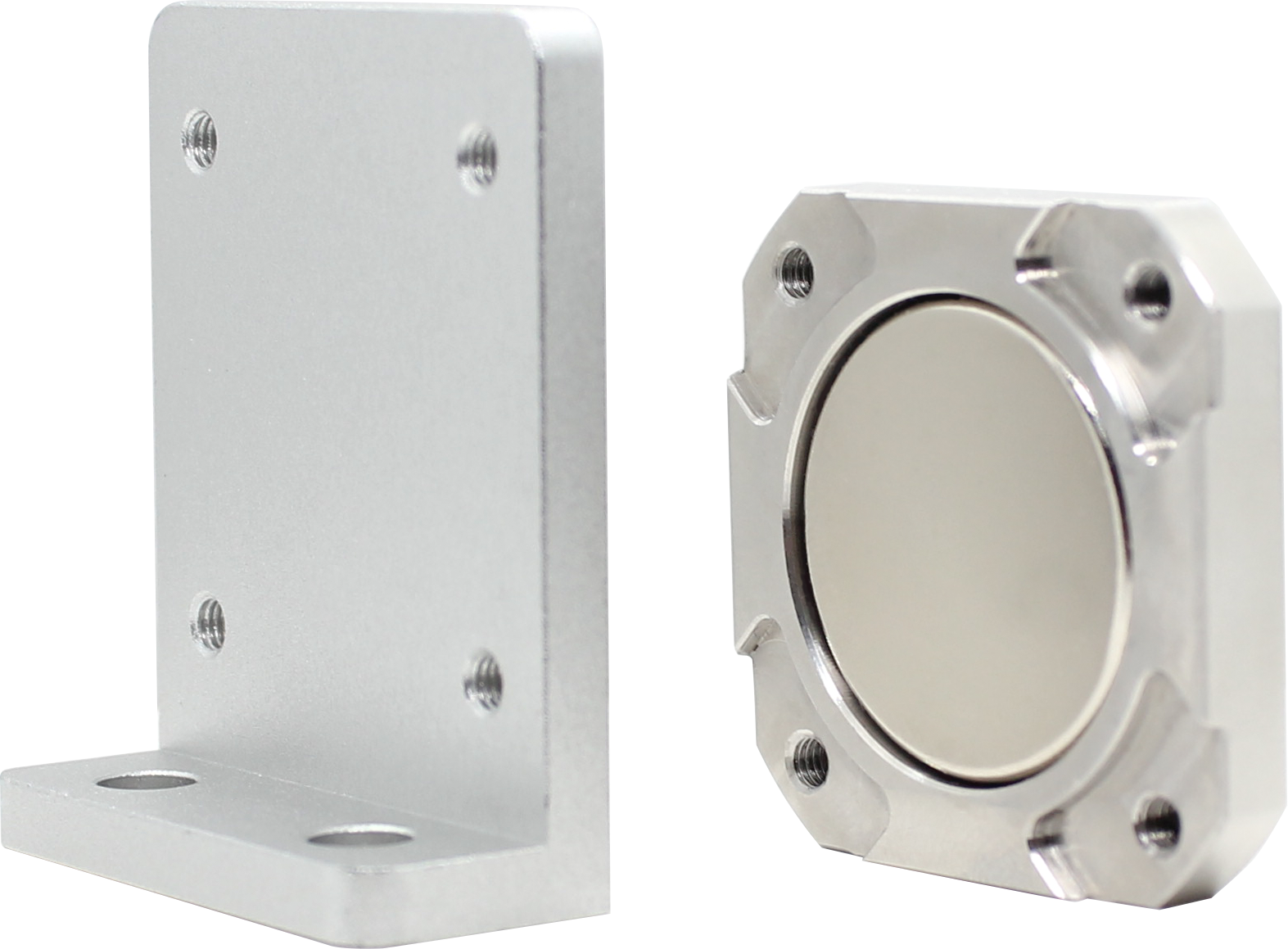

Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g

Dimension

Product size: 34.3*34.3*38.5mm

Magnetic adsorption base size: 34.23*34.23*6mm

L-shaped adapter plate size: 36*44*15mm

Dimensions


Size description

  • Shell size

    L34.4×W34.4×H24mm

  • Installation size

    L25.5×25.5×1.5mm

  • Mounting screws

    4 M3 screws

Specifications and Software
