Product Description

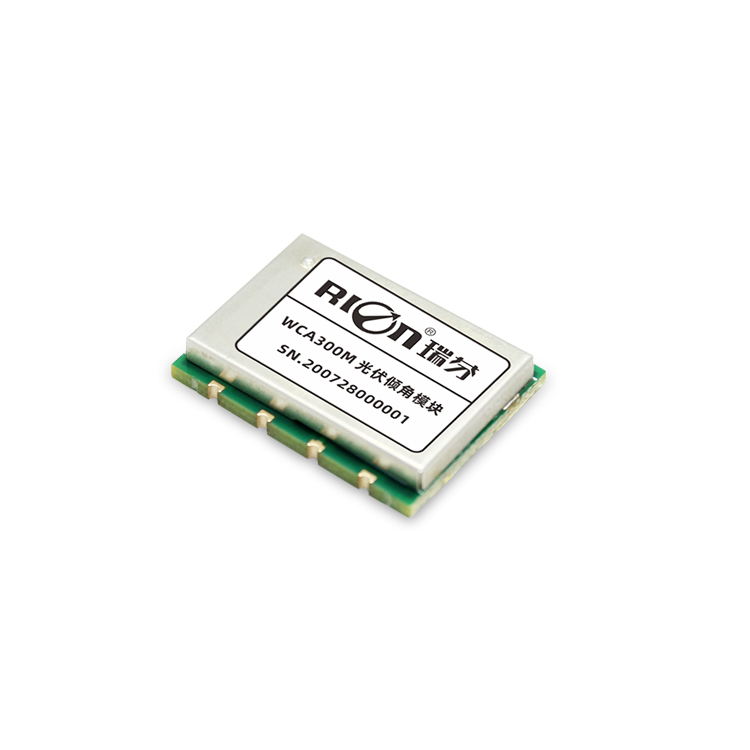

WCA300M single-axis inclination module is a new low-cost inclination module independently developed by RION Technology. It adopts the latest anti-jamming platform design and integrates a new micro-mechanical sensing unit. It has wide temperature working performance, superior anti-vibration performance, stable and reliable long-term work, and effective work. The life span is up to 10 years. Each module goes through the factory's strict calibration procedure, which effectively eliminates the zero-bias error. Cross axial error, linearity error. Using tape packaging, it can be directly used for automatic placement with SMT placement machine, which is more efficient and lower-cost.

Scope of application

Solar PV Tracking Control

Bridge monitoring

Track Monitoring

PARAMETERS

WCA300M	CONDITIONS	PARAMETERS	UNIT
Measure range	Single Axis	0~360	°
Resolution		0.1	°
Measureaccuracy	25℃	±0.2	°
Temp. drift characteristics	-40~85℃	±0.02	°/℃
Response time	No Filtering	0.1	S
Zero deviation		±0.1	°
Static operating current	DC5V	10	mA
Power on time		1	S
Operating Voltage	20Hz
Operating temp.	According to EN61000 and GBT17626
Output interface	≥50000 hours/times
Output load	≥100MΩ
Operating hours	100g@11ms、3 axial direction (half sinusoid)
Anti-vibration	10grms、10~1000Hz
Impact resistance	IP67
Weight	30g

Dimensions

Size description

Shell size

L24.5×W19×H4mm

Specifications and Software

* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.

SINGLE AXIS PV TILT MODULE
