Dual axis inclination measurement
Range ±1~±90° optional
Accuracy:0.008°
Resolution 0.001°
DC 9~36V wide voltage input
Wide temperature operation -40~+85℃
High vibration resistance>100g
Product Description
Scope of application
Parameter
Dimensions

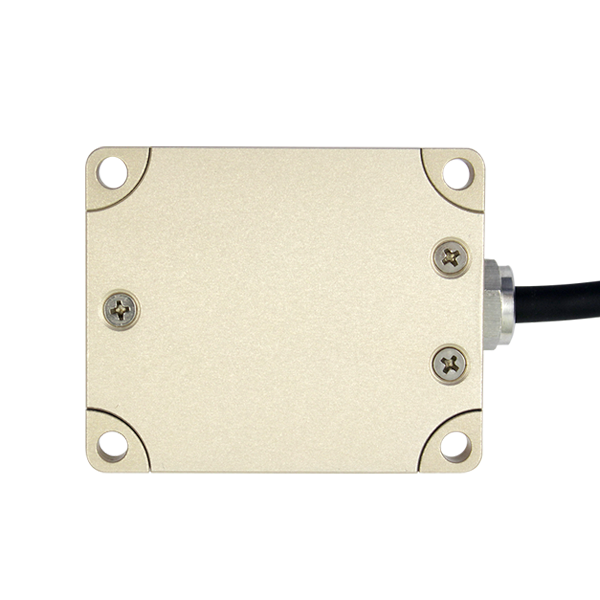

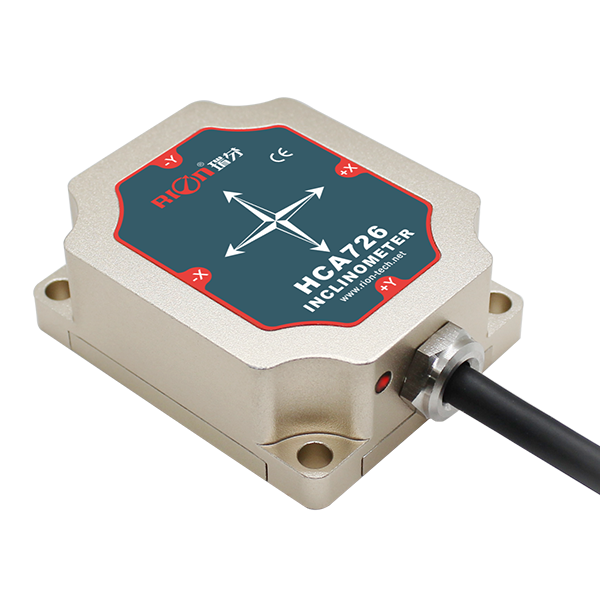

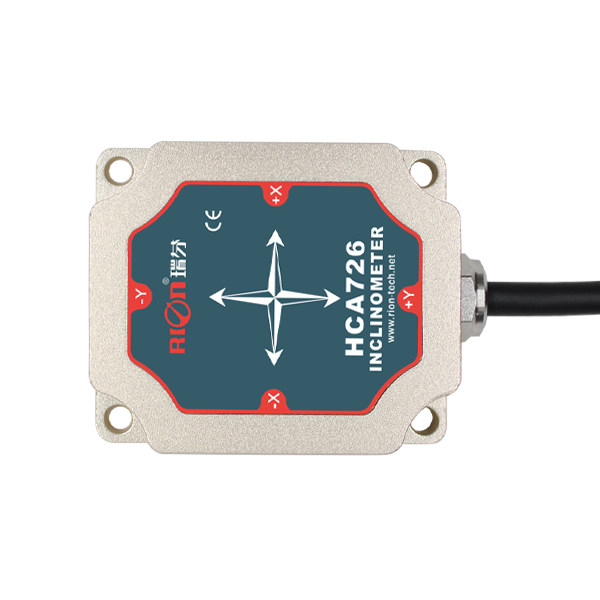

DownloadHCA726S is a small volume high-precision dual-axis inclinometer developed by RION Technology for industrial field control. It adopts CAN2.0A/B serial access interface. Built-in high-precision 24bit A/D differential converter, through the 5th order filtering algorithm, can measure the tilt and pitch angle of the sensor output relative to the horizontal plane. The product integrates the latest technology main MEMS tilting unit, the measuring range up to ±180°, and the full-scale accuracy is 0.01°, which can easily achieve dual-axis and single-axis tilt measurement. The product belongs to a real industrial grade product, with reliable and stable performance, good scalability, and multiple output options. It is suitable for the application of monitoring of ancient buildings, dilapidated buildings, ancient walls, etc., and large-scale high-precision measurement in industrial sites.
Safety monitoring of ancient buildings and dilapidated buildings
| HCA726 | PARAMETER | UNIT | ||||
| Measure range |
| ±15 | ±45 | ±60 | ±180 | ° |
| Measure axis |
| XY | XY | XY | Vertical X axis |
|
| Resolution |
| 0.001 | 0.001 | 0.003 | 0.005 | ° |
| Measure accuracy | @25℃ | ±0.008 | ±0.01 | ±0.01 | ±0.01 | °/RMS |
| Long temp.stability |
| <0.02 | <0.02 | <0.02 | <0.02 | ° |
| Zero Temp.coefficient | -40～85℃ | ±0.0005 | ±0.0005 | ±0.0005 | ±0.0005 | °/℃ |
| Sensitivity temp-coeffi | -40～85℃ | ≤0.01 | ≤0.01 | ≤0.01 | ≤0.01 | %/℃ |
| Power on time |
| 0.5 | 0.5 | 0.5 | 0.5 | S |
| Response time |
| 0.02 | 0.02 | 0.02 | 0.02 | s |
| Response frequency | >20HZ | |||||
| Interface | CAN2.0A/CAN2.0B | |||||
| EMC | According toEN61000 andGBT17626 | |||||
| MTBF | ≥50000 Hours/times | |||||
| Insulation Resistance | ≥100M | |||||
| Shockproof | 100g@11ms、3Times/Axis(half sinusoid)) | |||||
| Anti-vibration | 10grms、10～1000Hz | |||||
| Protection grade | IP67 | |||||
| Cables | Standard 1M length、wearproof、grease proofing、wide temperature、 Shielded cables 4*0.2mm2 | |||||
| Weight | 90g( without cable) | |||||
| PARAMETERS | CONDITIONS | MIN | STANDARD | MAX | UNIT |
|---|---|---|---|---|---|
| Power supply | Standard | 9 | 12、24 | 36 | V |
| Working current | non-loaded |
| 40 |
| mA |
| Working temperature |
| -40 |
| +85 | ℃ |
| Store temperature |
| -40 |
| +85 | ℃ |
L60.6×W46×H20.5mm
L48.5×W38×H6.5mm
4 M4 screws
* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
